Nickel 200 and Nickel 201 are solid solution strengthened, commercially pure wrought materials with good mechanical properties over a wide range of temperatures and excellent resistance to many corrosives, in particular hydroxides. Nickel 201 was a modification of 200 to control carbon (.02 max) which keeps it from being embrittled by intergranular precipitates at temperatures of 600° F to 1400° F in many processes. Typically, the elemental restrictions of both, nickel 200 and nickel 201, are combined into one, dual-certified chemistry resulting in a single alloy with the desired characteristics of both alloys, Nickel 200/201.

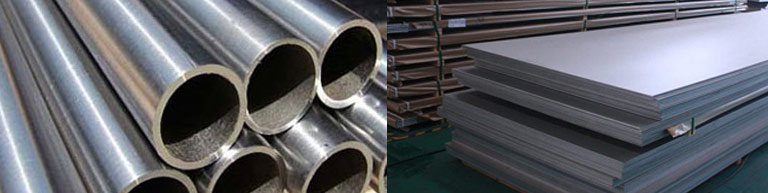

In what form is Nickel 200 Available at ISHWAR STEEL CORPORATION.?

• Sheet
• Plate
• Bar
• Pipe & Tube (welded & seamless)
• Flanges
• Wire

What are the characteristics of Nickel 200/201?

• Highly resistant to various reducing chemicals
• Excellent resistance to caustic alkalies
• High electrical conductivity
• Excellent corrosion resistance to distilled and natural waters
• Resistance to neutral and alkaline salt solutions
• Excellent resistance to dry fluorine
• Widely used to handle caustic soda
• Good thermal, electrical and magnetostrictive properties
• Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations

Nickel 200 (UNS N02200) Chemical Composition, %

Ni	Fe	Cu	C	Mn	S	Si
99.0 min	.40 max	.25 max	.15 max	.35 max	.01 max	.35 max

Nickel 201 (UNS N02201) Chemical Composition, %

Ni	Fe	Cu	C	Mn	S	Si
99.0 min	.40 max	.25 max	.02 max	.35 max	.01 max	.35 max

Fabrication with Nickel 200/201

All hot working and cold working practices can be utilized when shaping Nickel 200/201. Hot working temperatures should be between 1200° F and 2250° F with heavy forming to be performed at temperatures above 1600° F. Annealing should be performed at a temperature between 1300° F and 1600° F. Care should be taken when choosing the anneal temperature and time at temperature for this can greatly influence the mechanical properties and structure of the material.

Nickel 200/201 can be easily welded by conventional welding, brazing, and soldering processes with the exception of the oxyacetylene process.

Nickel 200/201 ASTM Specifications

Pipe Smls	Pipe Welded	Tube Smls	Tube Welded	Sheet/Plate	Bar	Fitting
B161	B622	B161	B622	B162	B160	B163

Mechanical Properties

Room Temperature properties of Various Products

Product Form	Condition	Tensile (ksi)	.2% Yield (ksi)	Elongation (%)	Hardness (HRB)
Rod & Bar	Hot Finished	60-85	15-45	55-35	45-80
Rod & Bar	Cold Drawn/Annealed or Hot-Finished/Annealed	55-75	15-30	55-40	45-70
Plate	Hot-Rolled/Annealed	55-80	15-40	60-40	45-75
Sheet	Annealed	55-75	15-30	55-40	70 max
Tube & Pipe	Seamless Annealed	55-75	12-30	60-40	70 max
