Hastelloy C22

Hastelloy C22, also known as alloy C22, is a versatile austenitic nickel-chromium-molybdenum-tungsten alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking. The high chromium content provides good resistance to oxidizing media while the molybdenum and tungsten content give good resistance to reducing media.

This nickel steel alloy also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions. Other corrosives Hastelloy C-22 has resistance to are oxidizing acid chlorides, wet chlorine, formic and acetic acids, ferric and cupric chlorides, sea water, brine and many mixed or contaminated chemical solutions, both organic and inorganic.

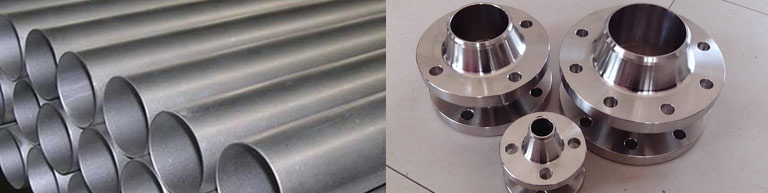

In what form is Hastelloy C22 Available at ISHWAR STEEL CORPORATION

• Sheet
• Plate
• Bar
• Pipe & Tube (welded & seamless)
• Flanges
• Wire

Chemical Properties

C	Cr	Co	Fe	Mn	Mo	Ni	P
.010 max	20-22.5	2.5 max	2.0-6.0	.50 max	12.5-14.5	Balance	.02 max
Si	S	W	V
.08 max	.02 max	2.5-3.5	.35 max

ASTM Specifications

Pipe Smls	Pipe Welded	Tube Smls	Tube Welded	Sheet/Plate	Bar	Forging	Fitting
B622	B619	B622	B626	B575	B574	B564	B366

Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form	Tensile (ksi)	.2% Yield (ksi)	Elongation %	Hardness (HRb)
Plate (.25”-1.75”)	112	53	62	89
Sheet (.038”-.15”)	122	63	54	93
Bar (.50”-5.50”)	115	55	60	89
