Stainless Steel 304L

Stainless Steel 304L






304 is the original "18-8" stainless. It is produced in greater quantity than any other austenitic stainless steel. 304 provides useful resistance to corrosion in many environments ranging from moderately reducing to moderately oxidizing. Through the controlled addition of nitrogen, it is common for 304L to meet the mechanical properties of 304 straight grade. As a result, most products are dual certified as 304 and 304/304L.

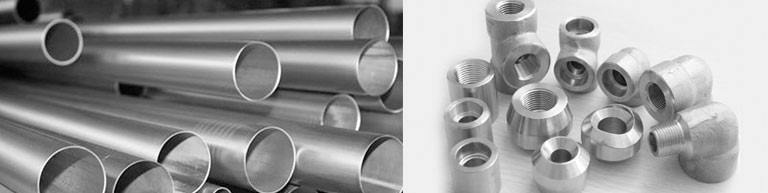

In what form is Stainless Steel 304l available at ISHWAR STEEL CORPORATION?

  • Bar
  • Wire
  • Sheet
  • Plate
  • Forgings
  • Pipe
  • Flanges

Chemistry

Ni Cr Mn Si C S P N Fe
MIN 8.0 18.0 - - - - - - -
MAX 10.5 20.0 2.0 0.75 0.03 0.03 0.045 0.10 Balance

Specifications

AMS 5511, AMS 5513, AMS 5639, AMS 5647
ASME SA 240, ASME SA 312, ASME SA 479
ASTM A 240, ASTM A 276, ASTM A 276 Condition A, ASTM A 276 Condition S, ASTM A 312, ASTM A 479
UNS S30400, UNS S30403
W. NR./EN 1.4301, W. NR./EN 1.4307

304 Stainless, 304L Stainless


Temperature, °F
70 212 932
Coefficient* of Thermal Expansion, in/in°F x 10-6
- 9.2 -
Thermal Conductivity
Btu • ft/ft2 • hr • °F
- 9.4 12.4
Modulus of Elasticity Dynamic, psi x 106
29 - -

* 70°F to indicated temperature.

Mechanical Properties


Representative Tensile Properties


Ultimate Tensile Strength, ksi
75
0.2% Yield Strength, ksi
30
Elongation, %
40
Hardness MAX, Brinell
201

Typical Tensile and Impact Properties


Temperature, °F
-425 -320 -100 70 400 800 1200
Ultimate Tensile Strength, ksi
250 230 150 90 70 66 48
0.2 % Yield Strength, ksi
100 70 50 35 23 19 15.5
Charpy Impact V-notch, ft-lbs
85 85 - 150 - - -
