Hastelloy C276

Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments.

The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures.

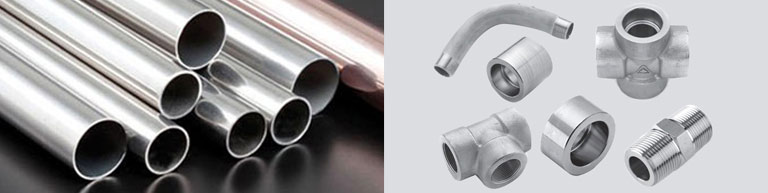

In what form is Hastelloy C276 Available at Ishwar Steel Alloys

• Sheet
• Plate
• Bar
• Pipe & Tube (welded & seamless)
• Flanges
• Wire

Chemical Properties

C	Cr	Co	Fe	Mn	Mo	Ni	P
.010 max	20-22.5	2.5 max	2.0-6.0	.50 max	12.5-14.5	Balance	.02 max
Si	S	W	V
.08 max	.02 max	2.5-3.5	.35 max

ASTM Specifications

Pipe Smls	Pipe Welded	Tube Smls	Tube Welded	Sheet/Plate	Bar	Forging	Fitting	Wire
B622	B619	B622	B626	B575	B574	B564	B366

Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form	Tensile (ksi)	.2% Yield (ksi)	Elongation %
Bar	110.0	52.6	62
Plate	107.4	50.3	67
Sheet	115.5	54.6	60
Tube & Pipe	105.4	45.4	70
